Specialized in Tinplate
Tinplate
Electrolytic Tinplate (ETP) is a thin cold-rolled carbon steel sheet coated by tin. It has an extremely beautiful metallic luster and excellent properties in corrosion resistance, solderability, and weldability, yet it is non-toxic.
Tinplate’s corrosion resistance, light weight and malleability make it idealistic for many precision end uses, including all types of containers such as food cans, beverage cans, 18-liter cans, and artistic cans.
|

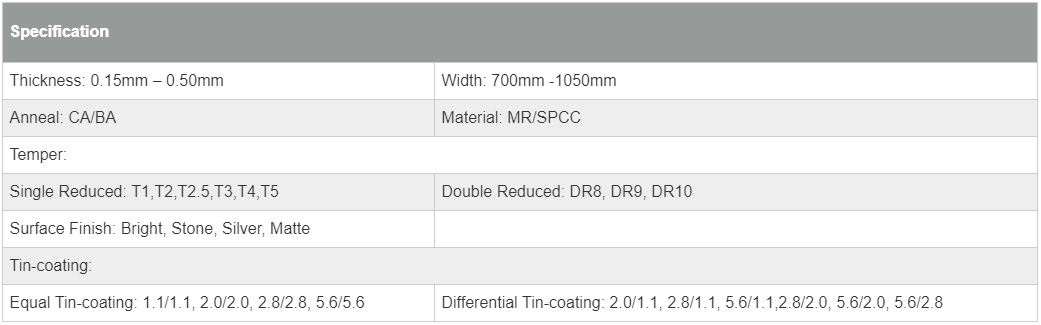

Specification
|
|
Thickness: 0.15mm – 0.50mm
|
Width: 700mm -1050mm
|
|
Anneal: CA/BA
|
Material: MR/SPCC
|
|
Temper:
|
|
Single Reduced: T1,T2,T2.5,T3,T4,T5
|
Double Reduced: DR8, DR9, DR10
|
|
Surface Finish: Bright, Stone, Silver, Matte
|
|
|
Tin-coating:
|
|
Equal Tin-coating: 1.1/1.1, 2.0/2.0, 2.8/2.8, 5.6/5.6
|
Differential Tin-coating: 2.0/1.1, 2.8/1.1, 5.6/1.1,2.8/2.0, 5.6/2.0, 5.6/2.8
|
Standard
|
Temper
|
|
Standard
|
Japanese Standard
|
Chinese Standard
|
European Standard
|
American Standard
|
|
JIS3303-2002
|
GB/T 2520-2000
|
DIN EN 10203-1991
|
ASTM623M-2002
|
|
Single-Reduced
|
T1
|
TH50+SE
|
TS230
|
T1 (T49)
|
|
T2
|
TH52+SE
|
TS245
|
T1 (T53)
|
|
T2.5
|
TH55+SE
|
TS260
|
T2.5 (T55)
|
|
T3
|
TH57+SE
|
TS275
|
T3 (T57)
|
|
T4
|
TH61+SE
|
TH415
|
T4 (T61)
|
|
T5
|
TH65+SE
|
TH435
|
T5 (T65)
|
|
Double-Reduced
|
DR7
|
H71+SE
|
TH520
|
DR7 (T71)
|
|
DR8
|
H73+SE
|
TH550
|
DR8 (T73)
|
|
DR9
|
H76+SE
|
TH620
|
DR9 (T76)
|
|

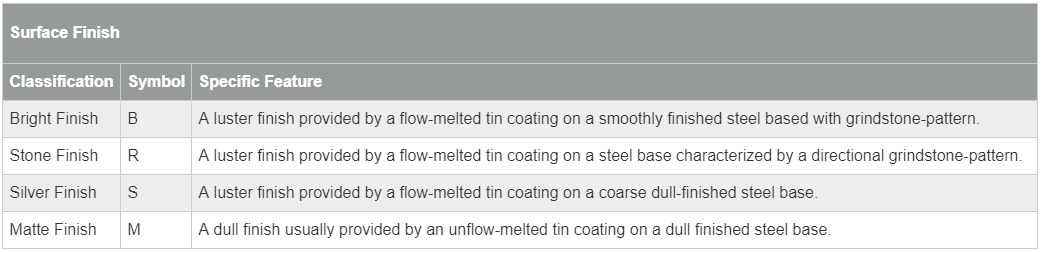

Surface Finish
|
|
Classification
|
Symbol
|
Specific Feature
|
|
Bright Finish
|
B
|
A luster finish provided by a flow-melted tin coating on a smoothly finished steel based with grindstone-pattern.
|
|
Stone Finish
|
R
|
A luster finish provided by a flow-melted tin coating on a steel base characterized by a directional grindstone-pattern.
|
|
Silver Finish
|
S
|
A luster finish provided by a flow-melted tin coating on a coarse dull-finished steel base.
|
|
Matte Finish
|
M
|
A dull finish usually provided by an unflow-melted tin coating on a dull finished steel base.
|
|

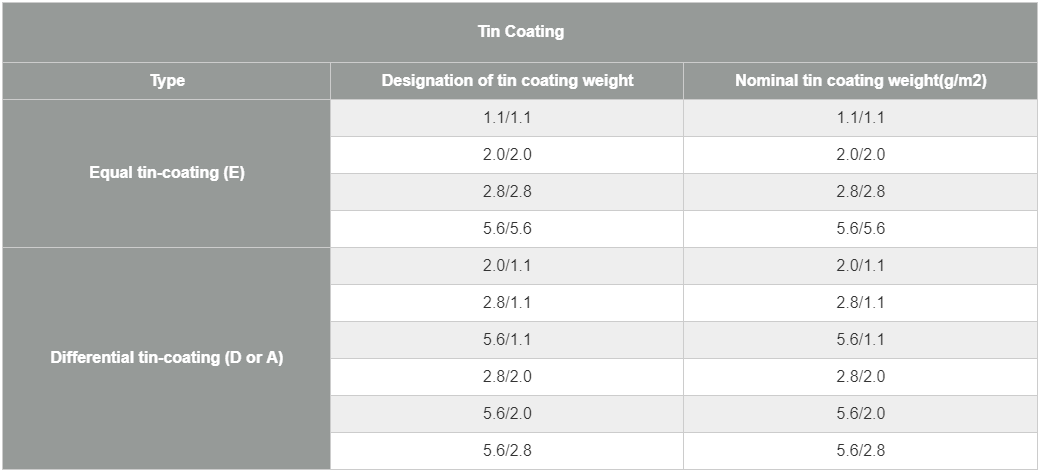

Tin Coating
|
|
Type
|
Designation of tin coating weight
|
Nominal tin coating weight(g/m2)
|
|
Equal tin-coating (E)
|
1.1/1.1
|
1.1/1.1
|
|
2.0/2.0
|
2.0/2.0
|
|
2.8/2.8
|
2.8/2.8
|
|
5.6/5.6
|
5.6/5.6
|
|
Differential tin-coating (D or A)
|
2.0/1.1
|
2.0/1.1
|
|
2.8/1.1
|
2.8/1.1
|
|
5.6/1.1
|
5.6/1.1
|
|
2.8/2.0
|
2.8/2.0
|
|
5.6/2.0
|
5.6/2.0
|
|
5.6/2.8
|
5.6/2.8
|
