Tin Free Steel (TFS) or Electrolytic Chromium Coated Steel (ECCS) is produced by applying electrolytic chromic acid treatment over cold rolled carbon steel sheets. It is widely used for making beverage cans and 18-liter cans, photographic film cases and as a protective material for optical fiber cables.
| Specification | ||||
|---|---|---|---|---|
| Thickness: 0.15mm – 0.50mm | Width: 700mm -1000mm | |||
| Anneal: CA/BA | Material: MR/SPCC | |||
| Temper: | ||||
| Single Reduced: T1,T2,T2.5,T3,T4,T5 | Double Reduced: DR8, DR9 | |||
| Surface Finish: Bright, Stone, Matte | ||||

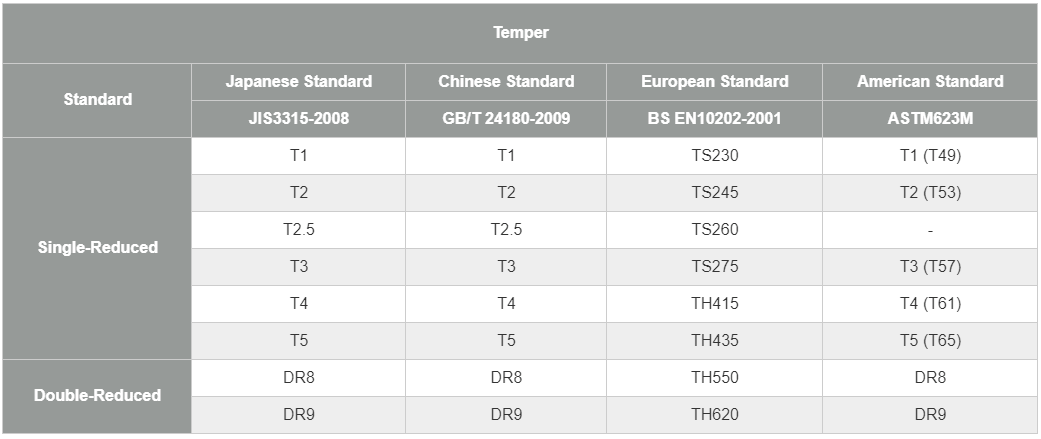

| Temper | ||||
|---|---|---|---|---|
| Standard | Japanese Standard | Chinese Standard | European Standard | American Standard |
| JIS3315-2008 | GB/T 24180-2009 | BS EN10202-2001 | ASTM623M | |
| Single-Reduced | T1 | T1 | TS230 | T1 (T49) |
| T2 | T2 | TS245 | T2 (T53) | |
| T2.5 | T2.5 | TS260 | - | |
| T3 | T3 | TS275 | T3 (T57) | |
| T4 | T4 | TH415 | T4 (T61) | |
| T5 | T5 | TH435 | T5 (T65) | |
| Double-Reduced | DR8 | DR8 | TH550 | DR8 |
| DR9 | DR9 | TH620 | DR9 | |

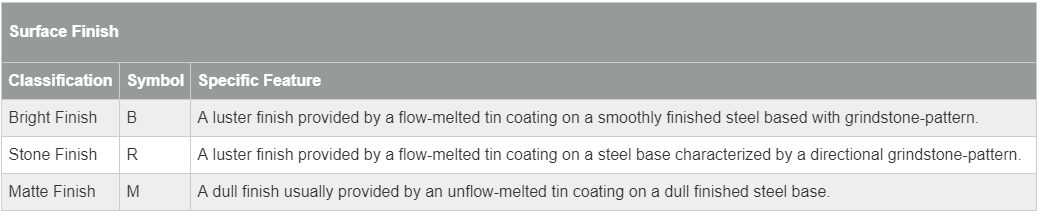

| Surface Finish | ||
|---|---|---|
| Classification | Symbol | Specific Feature |
| Bright Finish | B | A luster finish provided by a flow-melted tin coating on a smoothly finished steel based with grindstone-pattern. |
| Stone Finish | R | A luster finish provided by a flow-melted tin coating on a steel base characterized by a directional grindstone-pattern. |
| Matte Finish | M | A dull finish usually provided by an unflow-melted tin coating on a dull finished steel base. |

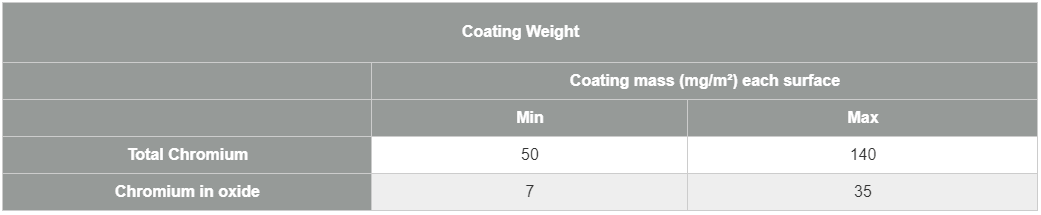

| Coating Weight | ||
|---|---|---|
| Coating mass (mg/m²) each surface | ||
| Min | Max | |
| Total Chromium | 50 | 140 |
| Chromium in oxide | 7 | 35 |
